Anlapus IPC Camera - Installation Guide

1. Installation Prerequisite



   Ensure the camera has been successfully added to the VSees App before installation.

2. Three Installation Methods

   • Method 1: Place on Flat Surface



     Set the camera directly on a desk, coffee table, or cabinet. Use the magnetic bracket for flexible placement on metal surfaces.

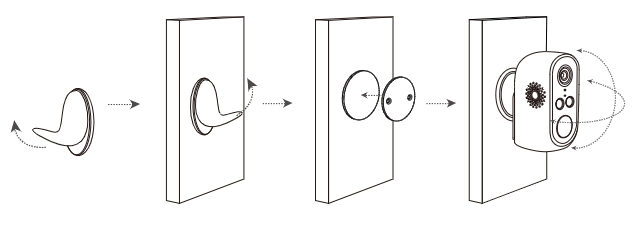

   • Method 2: Drill-Free Wall/Ceiling Mount



     ① Clean the mounting surface (must be clean, smooth, and dry; not suitable for uneven wood/plaster walls).



     ② Peel off the 3M adhesive backing, stick the mounting plate to the surface, and press firmly to remove air bubbles.



     ③ Wait at least 12 hours for maximum adhesion, then attach the camera to the plate magnetically and adjust the angle.

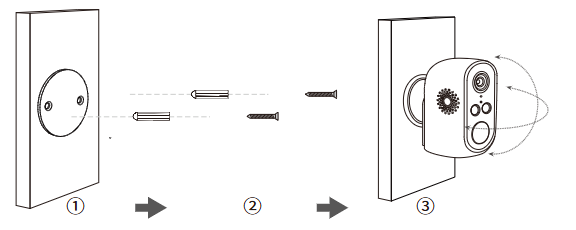

   • Method 3: Screw-In Wall/Ceiling Mount



     ① Use the mounting sticker to mark drilling points, drill holes, and insert wall anchors.



     ② Secure the mounting plate with screws.



     ③ Attach the camera’s magnetic bracket to the plate and adjust the viewing angle.


   Installation & Usage Tips
   • Avoid pointing the camera directly at light sources or reflective surfaces (e.g., glass windows) to prevent image distortion.
   • Keep the camera away from microwaves, TVs, or cordless phones to avoid signal interference.
   • Clean the lens regularly with a soft cloth; protect the power port from water, moisture, or dirt.
3. More question feel free to let us know~
