How to Add a Camera to Home Base？

Add Camera

Pre-adding Note: For purchased kits, cameras are pre-paired at factory and will auto-connect to the home base station after power-on. This procedure applies to:

Case 1: Camera reset, re-adding to the home base station kit. Important: After camera reset, open APP Settings->Channel Management to delete the reset camera channel, otherwise the camera will be added to a new channel.

Case 2: When adding a newly purchased camera to the home base station kit.

Method 1: One-Button Camera Pairing

Step 1: Ensure camera is in factory settings

If Case 1: Camera already reset → proceed to Step 2

If Case 2: New camera purchase → press "POW" button on camera back for 3 seconds. You'll hear "Device is waiting to connect" and see slow red network indicator flashing → proceed to Step 2

If no voice prompt or red light flashing, press camera "RES" button to reset.



Step 2: Set camera to pairing mode

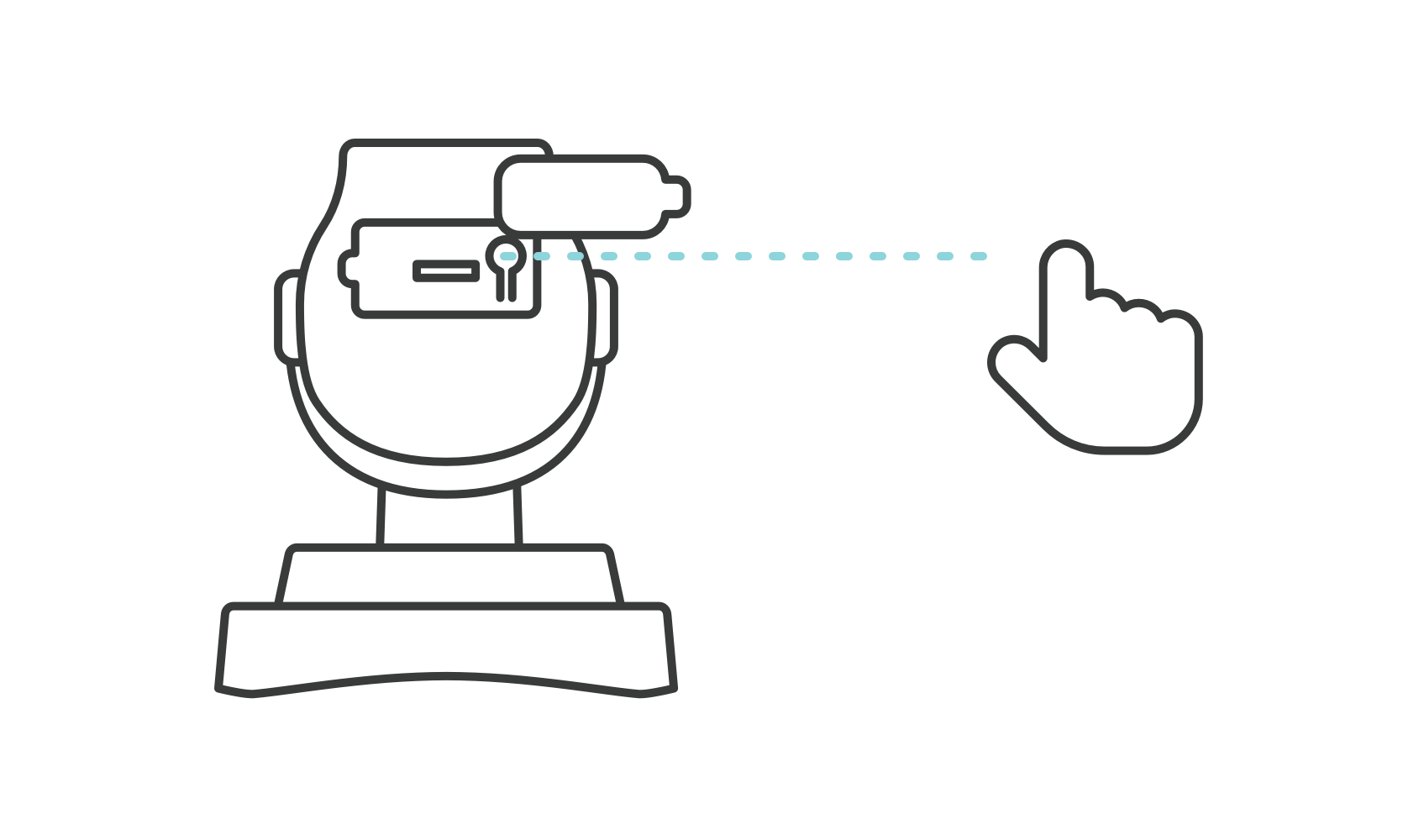

Briefly press "POW" button on camera back. Camera beeps once and enters pairing mode.



Step 3: Initiate pairing

Press and hold "SYNC" key on base station back for 6 seconds. Base station beeps once with green LAN indicator slowly flashing. Base station will auto-search and pair camera. When hearing "Wireless Connection Succeed" and blue indicator light on camera, connection is successful. If failed, restart from Step 1 or contact official after-sales service on manual back cover.

Method 2: Scan QR to Add Camera

Step 1: Press and hold the power switch on the camera's back for 3 seconds. You will hear "Device is waiting to connect", and the camera's network indicator will flash red slowly.

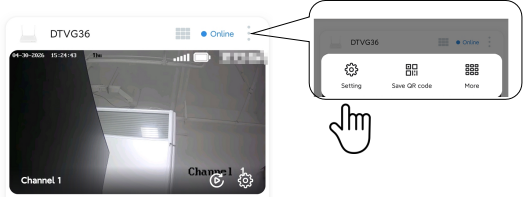

Step 2: Open the APP,  and click on   the icon  in the top right corner of Home Base.

On the "Setting" page, select "Channel Management" → Choose an unused channel, tap  → On the "Configuration Settings" page, confirm if you hear "Device is waiting to connect" → If heard, check the box and tap "Next".

Step 3:

1)Aim the camera lens at the QR code on your phone. On the "Scan QR Code" page, confirm if you hear "Wireless Configuration Succeed" → If heard, check the box and tap "Next". The camera will pair with Home Base automatically.

2)On the "Added Successfully" page, tap "Confirm" to complete pairing. The camera indicator will turn blue.

Notes:

1)Ensure Home Base is added to the APP before Step 2.

2)During Step 2, the camera is in pairing mode (red indicator slowly flashing). Press "POW" to power on if the indicator is off.

3)If an error occurs during pairing, press "RES" to reset the camera.
